ASME B16.5 Metric Stud Bolts Dimensions
Metric stud bolts designed for flange connections in global industrial applications
ASME B16.5 Metric Stud Bolts Dimension Standard ensure accurate fit, thread engagement, and performance in metric piping systems and industrial assemblies.

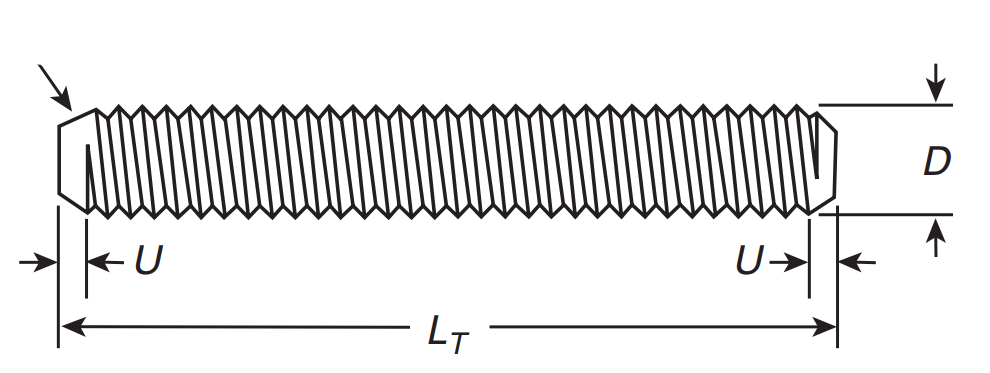

ASME B16.5 Metric Stud Bolts Dimensions
| Nominal Size Diameter, D | Pitch, P | Umax = 2P | Nominal Length, LT | |
|---|---|---|---|---|
| Range | Increments | |||
| M5 | 0.8 | 1.6 | 12 - 20 | 4 |
| 25 - 50 | 5 | |||
| 60 - 160 | 10 | |||
| ≥ 180 | 20 | |||
| M6 | 1 | 2.0 | 16 - 20 | 4 |
| 25 - 50 | 5 | |||
| 60 - 160 | 10 | |||
| ≥ 180 | 20 | |||
| M8 | 1.25 | 2.5 | 25 - 50 | 5 |
| 60 - 160 | 10 | |||
| ≥ 180 | 20 | |||
| M10 | 1.5 | 3.0 | 30 - 50 | 5 |
| 60 - 160 | 10 | |||
| > 180 | 20 | |||
| M12 | 1.75 | 3.5 | 40 - 50 | 5 |
| 60 - 160 | 10 | |||
| ≥ 180 | 20 | |||
| M14 | 2 | 4.0 | 60 - 160 | 10 |
| ≥ 180 | 20 | |||
| M16 | 2 | 4.0 | 60 - 160 | 10 |
| ≥ 180 | 20 | |||
| M20 | 2.5 | 5.0 | 60 - 160 | 10 |
| ≥ 180 | 20 | |||
| M22 | 2.5 | 5.0 | 60 - 160 | 10 |
| ≥ 180 | 20 | |||
| M24 | 3 | 6.0 | 70 - 160 | 10 |
| ≥ 180 | 20 | |||
| M27 | 3 | 6.0 | 80 - 160 | 10 |
| ≥ 180 | 20 | |||
| M30 | 3.5 | 7.0 | 90 - 160 | 10 |
| ≥ 180 | 20 | |||
| M36 | 4 | 8.0 | 110 - 160 | 10 |
| ≥ 180 | 20 | |||
| M42 | 4.5 | 9.0 | 120 - 160 | 10 |
| ≥ 180 | 20 | |||
| M48 | 5 | 10.0 | 150 - 160 | 10 |
| ≥ 180 | 20 | |||
| M56 | 5.5 | 11.0 | ≥ 180 | 20 |
| M64 | 6 | 12.0 | ≥ 180 | 20 |
| M72 | 6 | 12 | ≥ 200 | 20 |
| M80 | 6 | 12 | ≥ 200 | 20 |
| M90 | 6 | 12 | ≥ 200 | 20 |
| M100 | 6 | 12 | ≥ 200 | 20 |
ASME B16.5 Metric Stud Bolts Length Tolerance
| Nominal Length | Tolerance | |
|---|---|---|
| Over | Through | |
| 6 | 10 | ± 0.45 |
| 10 | 18 | ± 0.55 |
| 18 | 30 | ± 0.65 |
| 30 | 50 | ± 0.80 |
| 50 | 80 | ± 1.50 |
| 80 | 120 | ± 1.75 |
| 120 | 180 | ± 2.00 |
| 180 | 250 | ± 2.30 |
| 250 | 315 | ± 2.60 |
| 315 | 400 | ± 2.85 |
| 400 | 500 | ± 3.15 |
| >500 | ... | ± 10.00 |
