Heavy-duty metric screws with larger head size

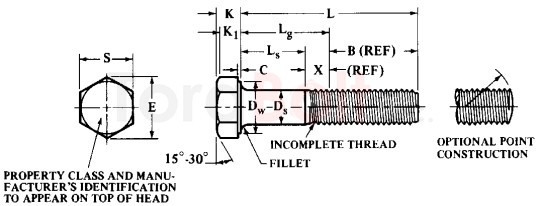

ASME B18.2.3.3M Metric Heavy Hex Screws Dimension Standard define head, body and thread dimensions for industrial applications.
| Nominal Dia., D , and Thread Pitch | Body Diameter.,D s | Width Across Flats,S | Width Across Corners, E | Head Height, K | Wrenching Height, K 1 | Washer Face Thickness,C | Washer FaceDia.,D w | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | Max | Min | Min | Max | Min | Min | |
| ANSI B18.2.3.3M - M12 × 1.75 | 12 | 11.73 | 21 | 20.67 | 24.25 | 23.35 | 7.76 | 7.24 | 5.2 | 0.6 | 0.3 | 19.6 |
| ANSI B18.2.3.3M - M14 × 2 | 14 | 13.73 | 24 | 23.67 | 27.71 | 26.75 | 9.09 | 8.51 | 6.2 | 0.6 | 0.3 | 22.5 |
| ANSI B18.2.3.3M - M16 × 2 | 16 | 15.73 | 27 | 26.67 | 31.18 | 30.14 | 10.32 | 9.68 | 7 | 0.8 | 0.4 | 25.3 |
| ANSI B18.2.3.3M - M20 × 2.5 | 20 | 19.67 | 34 | 33 | 39.26 | 37.29 | 12.88 | 12.12 | 8.8 | 0.8 | 0.4 | 31.4 |
| ANSI B18.2.3.3M - M24 × 3 | 24 | 23.67 | 41 | 40 | 47.34 | 45.2 | 15.44 | 14.56 | 10.5 | 0.8 | 0.4 | 38 |
| ANSI B18.2.3.3M - M30 × 3.5 | 30 | 29.67 | 50 | 49 | 57.74 | 55.37 | 19.48 | 17.92 | 13.1 | 0.8 | 0.4 | 46.6 |
| ANSI B18.2.3.3M - M36 × 4 | 36 | 35.61 | 60 | 58.8 | 69.28 | 66.44 | 23.38 | 21.72 | 15.8 | 0.8 | 0.4 | 55.9 |
|
||||||||||||
