    B18.2.1 Heavy Hex Cap Screws Dimensions

    Heavy-duty hex cap screws with larger heads for increased load capacity

    B18.2.1 Heavy Hex Cap Screws Dimension Standard provide enhanced strength and larger bearing surfaces for demanding structural applications.

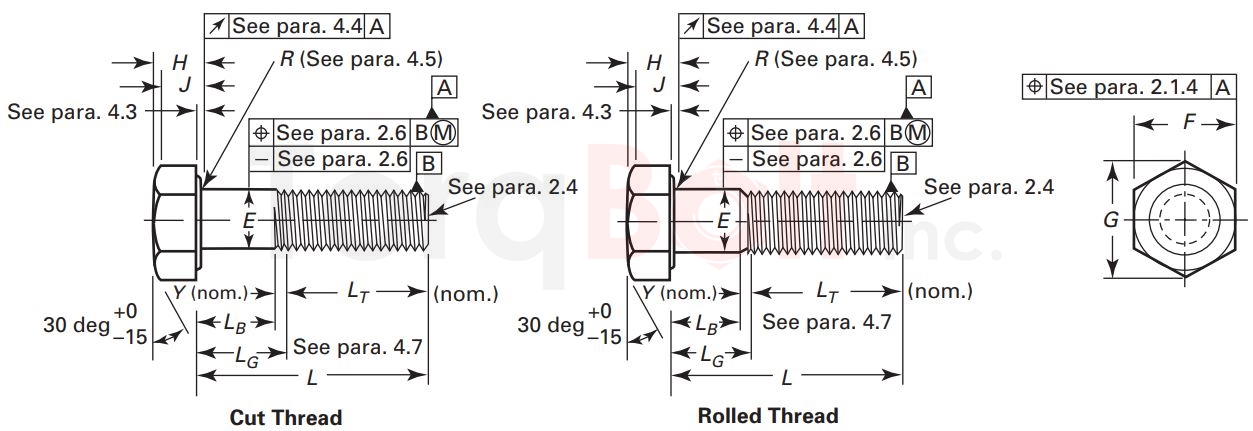

    ASME B18.2.1 Heavy Hex Cap Screws

    ASME B18.2.1 Heavy Hex Cap Screws Dimensions

    Nominal Size Body Diameter, E Width Across Flats, F Width Across Corners, G Head Height, H Minimum Wrenching Height, J Thread Length, LT Transition Thread Length, Y Maximum Total Runout of Bearing Surface FIM
    Max. Min. Basic Max. Min. Max. Min. Basic Max. Min. >6" <6" Reference
    ASME B18.2.1 - 3⁄8 9.53 9.53 9.14 17.46 17.48 16.99 20.17 19.38 5.95 6.17 5.74 4.06 25.40 31.75 7.92 0.36
    ASME B18.2.1 - 1⁄2 12.70 12.70 12.24 22.23 22.23 21.59 25.65 24.61 7.94 8.20 7.67 5.46 31.75 38.10 9.78 0.41
    ASME B18.2.1 - 5⁄8 15.88 15.88 15.37 26.99 26.97 26.19 31.17 29.85 9.92 10.24 9.60 6.83 38.10 44.45 11.56 0.48
    ASME B18.2.1 - 3⁄4 19.05 19.05 18.52 31.75 31.75 30.78 36.65 35.13 11.91 12.27 11.56 8.23 44.45 50.80 12.70 0.56
    ASME B18.2.1 - 7⁄8 22.23 22.23 21.64 36.51 36.53 35.41 42.16 40.36 13.89 14.30 13.49 9.60 50.80 57.15 14.12 0.64
    ASME B18.2.1 - 1 25.40 25.40 24.79 41.28 41.28 40.01 47.65 45.62 15.48 15.93 15.01 10.57 57.15 63.50 15.88 0.71
    ASME B18.2.1 - 1 1⁄8 28.58 28.58 27.89 46.04 46.02 44.60 53.16 50.85 17.46 18.24 16.71 11.71 63.50 69.85 18.14 0.81
    ASME B18.2.1 - 1 1⁄4 31.75 31.75 31.06 50.80 50.80 49.23 58.65 56.11 19.84 20.65 19.02 13.46 69.85 76.20 18.14 0.89
    ASME B18.2.1 - 1 3⁄8 34.93 34.93 34.16 55.56 55.58 53.82 64.16 61.37 21.43 22.30 20.57 14.45 76.20 82.55 21.16 0.97
    ASME B18.2.1 - 1 1⁄2 38.10 38.10 37.34 60.33 60.33 58.42 69.65 66.60 23.81 24.74 22.91 16.26 82.55 88.90 21.16 1.04
    ASME B18.2.1 - 1 5⁄8 41.28 41.28 40.41 65.09 65.07 63.02 75.16 71.86 25.40 26.37 24.43 17.63 88.90 95.25 23.09 1.12
    ASME B18.2.1 - 1 3⁄4 44.45 44.45 43.59 69.85 69.85 67.61 80.65 77.09 27.78 28.80 26.77 19.00 95.25 101.60 25.40 1.22
    ASME B18.2.1 - 1 7⁄8 47.63 47.63 46.71 74.61 74.63 72.24 86.16 82.35 29.37 30.43 28.30 20.37 101.60 107.95 25.40 1.32
    ASME B18.2.1 - 2 50.80 50.80 49.89 79.38 79.38 76.84 91.64 87.60 30.96 32.08 29.85 20.96 107.95 114.30 28.22 1.40
    ASME B18.2.1 - 2 1⁄4 57.15 57.15 56.24 88.90 88.90 86.06 102.64 98.09 34.93 36.14 33.71 23.70 ... 127.00 28.22 1.55
    ASME B18.2.1 - 2 1⁄2 63.50 63.50 62.51 98.43 98.43 95.25 113.64 108.59 30.96 40.21 37.57 26.47 ... 139.70 31.75 1.73
    ASME B18.2.1 - 2 3⁄4 69.85 69.85 68.86 107.95 107.95 104.44 124.64 119.08 26.99 44.30 41.45 29.24 ... 152.40 31.75 1.88
    ASME B18.2.1 - 3 76.20 76.20 75.21 117.48 117.48 113.67 135.64 129.59 47.63 49.15 46.10 32.77 ... 165.10 31.75 2.06
    ASME B18.2.1 - 3 1⁄4 82.55 82.55 81.53 127.00 127.00 122.89 146.66 140.08 50.80 54.00 50.75 35.53 ... 177.80 31.75 2.31
    ASME B18.2.1 - 3 1⁄2 88.90 88.90 87.91 136.53 136.53 132.08 157.66 150.57 57.15 57.30 53.85 37.69 ... 190.50 31.75 2.49
    ASME B18.2.1 - 3 3⁄4 95.25 95.25 94.26 146.05 146.05 141.27 168.66 161.06 60.33 62.15 58.50 40.94 ... 203.20 31.75 2.67
    ASME B18.2.1 - 4 101.60 101.60 100.61 155.58 155.58 150.50 179.65 171.58 63.50 65.43 61.57 43.10 ... 215.90 31.75 2.84
    ASME B18.2.1 - 4 1⁄4 107.95 107.95 107.26 165.10 165.10 159.72 190.65 182.07 69.85 70.31 66.24 46.38 ... 228.60 31.75 3.02
    ASME B18.2.1 - 4 1⁄2 114.30 114.30 113.61 174.63 174.63 168.91 201.65 192.56 73.03 73.56 69.29 48.51 ... 241.30 31.75 3.20
    ASME B18.2.1 - 4 3⁄4 120.65 120.65 119.96 184.15 184.15 178.10 212.65 203.05 76.20 78.44 73.96 51.77 ... 254.00 31.75 3.38
    ASME B18.2.1 - 5 127.00 127.00 126.30 193.68 193.68 187.33 223.65 213.56 79.38 81.71 77.04 53.92 ... 266.70 31.75 3.56
    ASME B18.2.1 - 5 1⁄4 133.35 133.35 132.65 203.20 203.20 196.55 234.65 224.05 85.73 86.56 81.69 57.18 ... 279.40 31.75 3.73
    ASME B18.2.1 - 5 1⁄2 139.70 139.70 139.00 212.73 212.73 205.74 245.64 234.54 88.90 89.87 84.79 59.36 ... 292.10 31.75 3.91
    ASME B18.2.1 - 5 3⁄4 146.05 146.05 145.35 222.25 222.25 214.93 256.64 245.03 92.08 94.72 89.43 62.61 ... 304.80 31.75 4.09
    ASME B18.2.1 - 6 152.40 152.40 151.70 231.78 231.78 224.16 267.64 255.52 95.25 97.99 92.51 64.74 ... 317.50 31.75 4.27
